How to Operate the TD163 Guest Paging System?

Wireless Guest Paging System

The guest paging system is widely used in the pandemic to keep the safe distance, especially in restaurants, cafes, pharmacies, veterinary clinics, and so on.

Here is how to set the Retekess TD163 for your business.

Changing ID of the keypad-F1

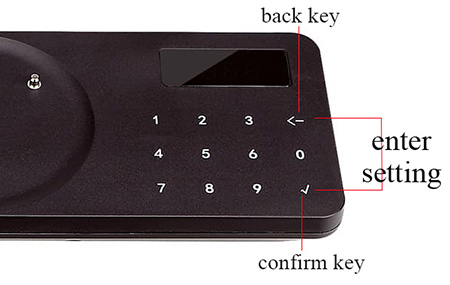

There are 2 setting keys on the keypad confirming the key and back key, press the 2 keys at the same time, will be in the setting interface-F1. For F1, it is for changing the ID of keys, which means that several keypads support to call the same pagers. It is a good feature of TD163, which means that you can use the systems in the food centers, which have many windows.

Pair the pagers-F2

Using the same way to enter show F2 on the screen, and press the confirm key to enter. It will show 0 in the screen, enter the number that you need, press the number key to change the displayed number (No. 0-998), removing the menu card that is being charged. Pls make sure that you will press the call button on the host keyboard within 5 seconds, then the menu card flashes light + buzzer to indicate successful code matching. The kindly note is that pls put all the pagers in the charging slot.

Prompt time-F3

Enter the setting mode, the default screen flashes "0", then press the number key to change the display number (when set to 0, the menu will always remind the alarm after calling), removing the real charging menu, and make sure that press the call key within 5 seconds on the host keyboard.

Speed of beep -F4

Using the same way to enter show F4 on the screen, press the Confirm key to enter. Press the number (0 means turn off the beep, 1 means slow speed, 2 means medium speed, 3 means fast), taking out the menu that is being charged, and pls make sure that press the call button on the host keyboard within 5 seconds.

Power of vibration -F5

Using the same way to enter F5, 0 means turn off vibration, and other numbers are to turn on vibration, when pressing the number, pls make sure that you will press the number within 5 seconds from your take off the pagers from the charging base.

Power of vibration -F6

Using the same way to enter F5, press the Confirm key to enter and set. Choose the number and take off the pagers from the charging base. Also pls make sure that you confirm it within 5 seconds after you take the pagers off. Kindly note: 0 means turn off the light, 1 means slow mode, 2 means fast mode, 3 means breathing light mode, the system defaults to breathing light mode

Power off all the pagers one time

There are 999 pagers in one system, but there are 998 pagers that can be used for the pagers number, because the 999, it is used for powering off all the pagers at one time. It is very useful to power off all the pagers.

Hope that this article will help you to operate and set the guest paging system for your business and choose the prompt way that you need. If you want to know more, pls email us at support@retekess.com

If you still have confusion for the operation, pls click here. Do hope that our products will help your business well especially at the hard time-COVID-19.
