Retekess TT106 Interpretation Systems Wireless Tour Guide System Ear Hook Receiver for Schools, Conference, Training, Assisted Listening
9999 channels
One-touch mute transmitter
Wireless ear hook receiver, no need for additional headphone
Easy to operate and durable
Allow two transmitters to speak at the same time
Support MIC and AUX input at the same time
Communication range up to 150 m/492 ft

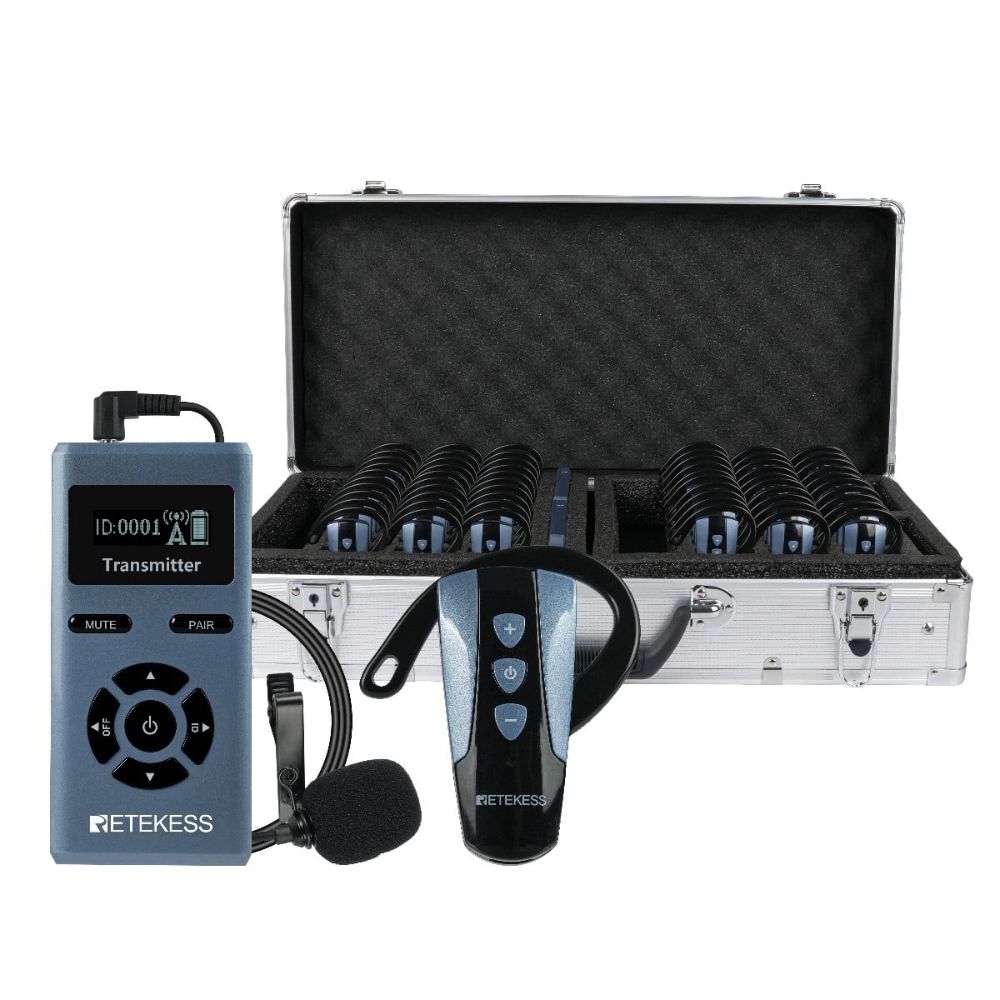

This Interpretation Systems kit includes:
- 4 transmitters (with mic)
- 60 receivers
- 1 64-slot charging case
-4 free headset microphone
Bulk order Inquiry
OverView
The Retekess TT106 tour guide interpretation system is a flexible, high-performance wireless audio solution perfect for schools, conferences, training, and assisted listening. Its lightweight ear hook receiver ensures comfort and mobility, while 9999 channels enable multiple groups to work seamlessly in the same area. For more detailed feature, view the following content!
Wireless Ear Hook Receivers
TT106 wireless ear hook receiver eliminates the need to plug in additional headset cables, providing users with convenience and freedom of movement. Wireless design reduces the risk of cable tangles and allows students to focus on the class or presentation without any distractions. The volume up and down buttons on the receiver allow audiences the freedom to adjust the volume and hear clearly, regardless of their hearing ability or the noise level around them.
9999 Channel IDs
Translation devices for schools offer 9999 channels to choose from. Allowing you to set up multiple teams in the same area. This ensures clear and reliable communication between every translation team, even when there are many languages to be translated.
Flexibility to Add Receivers
The TT106 transmitter supports connecting any number of receivers and working together, allowing you to add or subtract receivers as group size changes. This means that whether it's a small group or a large crowd, the TT106 interpretation devices can accommodate all participants.
One-touch Mute Function
The transmitter with a convenient one-button mute function, which allows you to interrupt audio transmission by just clicking the right button. This feature allows presenters or interpreters to quickly mute the microphone when needed, avoiding the transmission of unwanted sound to the receiver and increasing flexibility and control over the communication process.
Easy to use
Translation Equipment Supports Auto-pairing: the transmitter and receiver can automatically synchronize channels, simplifying the setup process. No need to manually set them up one by one, thus saving time and effort.
One-touch Shutdown of All Receivers: To simplify the shutdown process, Retekess wireless interpretation system supports one-touch shutdown of all paired receivers. This feature simplifies the power-off procedure saves time, and ensures the effective shutdown of devices at the end of school event.
Operating Time of Interpretation Systems
The transmitter can be fully charged in less than 3 hours and can be used continuously for up to 25 hours. The receiver can be fully charged in 2 hours and provides up to 23 hours of operation. The long battery life ensures that the device can be used throughout the day without frequent charging.
Communication Range
The tour guide interpretation system has an operating range of up to 150 meters / 492 feet in open areas. This extended range ensures that participants can spread out and move freely within a designated area while receiving clear, uninterrupted audio transmission. It is especially useful in larger classrooms, auditoriums, or outdoor school events.
2.4GHz Global Public Frequency
The Retekess tt106 interpretation system operates on the 2.4GHz frequency band. This band is widely used and license-free worldwide, ensuring compatibility and interference-free communications in a variety of international environments.
Portable Charging Case
The wireless interpretation system comes with a portable 64-port charging case, that can be used as both a batch charging unit and a carry case. It comes with a portable handle that holds the transmitter, receiver, lanyard, and microphone, and can be easily carried to different locations around campus, providing a convenient and organized solution for transport and storage.
How does the Interpretation System work?
Spec
Specification:
TT106 Wireless Transmitter | TT106 Wireless Receiver | ||
Frequency Range | 2400~2483MHz | Frequency Range | 2400~2483MHz |
ID Number | 9999 | ID Number | 9999 |
Supply Voltage | DC3.7V | Supply Voltage | DC3.7V |
Transmitting power | <=50mW | TIS | -90dBm |
Frequency stability | ±0.001 | Frequency stability | ±0.001 |
SNR | 80dB | SNR | 80dB |
Size | 97*63*18mm | Size | 65*58*11mm |
Weight | 70g | Weight | 18g |
Charge time | 3H | Charge time | 2H |
Working time | 25H | Working time | 23H |
Battery specification | 3.7V/1300mA | Battery Specification | 3.7V/380mA |
Charge Jack | MINI USB | Charge Jack | MINI USB |
Modulation frequency deviation | ±320KHz | Modulation frequency deviation | ±320KHz |
Working current | 62mA | Working current | 15mA |
Communication range | 150m (open air) | Standby current | 1mA |
Charging voltage | DC5V | Charging current | 320mA |
Communication range | 150m (open air) | ||
Charging voltage | DC5V |
Specification of TT006 64-slot charging case:
Input properties | Input voltage | AC90-250VAC, 47~63Hz |
AC input current | 1.5A/230VAC | |
Power supply efficiency | 76% | |
Inrush current | cold start current 36A/230V | |
Leakage current | <2mA/240VAC | |
Output characteristics | DC output voltage | 5V |
Output voltage tolerance | ±1% | |
Output current range | 0~7A (single power supply) | |
Output power | 140W | |
Ripple and noise | 80mVp-p | |
Protection characteristics | Overload protection | Overload protection starts at 115%~135% of rated output power |
Protection mode: hiccup mode, automatically recovers after abnormal load conditions are removed | ||
Overvoltage protection | 145%~170% of rated output voltage | |
Protection mode: hiccup mode, automatically recovers after abnormal conditions are removed | ||
Over-temperature protection | When the internal contact temperature of the transistor exceeds 150°C, over-temperature protection is activated. | |
Protection mode: hiccup mode, automatically resumes when the temperature returns to normal | ||
working environment | Working temperature and humidity | -10℃~+60℃; 20%~90%RH (please refer to the load derating curve) |
Safety Voltage | resistance | Between input and output: 1.5KVAC Input and ground: 1.5KVAC Output and ground: 0.5KVAC |
Insulation resistance | between input and output: input and ground, output and ground: 100M Ohms/500VDC | |
Size | 575 x290 x 140mm | |
Weight | 4320g | |
Remarks: 1. Unless otherwise specified, all parameters are measured under the conditions of 230VAC voltage input, rated load and 25℃. 2. The ripple and noise voltages are measured on a 20MHz bandwidth oscilloscope with 0.1u and 47u capacitors added to the end of a 12-inch twisted pair. 3. Tolerance is the sum of voltage setting error, voltage regulation rate and current regulation rate. |
Package Includes:
4 X TT106 transmitter
4 X Lavalier microphone
60 X TT106 receiver
64 X Charging cable
1 X 64-slot charging case
1 X User manual
4 X Headset Microphone
FAQ
Q: How many pieces of receivers can i use in one group?
A: It max support 9999 channels
Q: Can i use 2 pieces of transmitters in one group?
A: Yes, you can. All the receivers will get 2 transmitters' signals at the same time.
Q: How long can i use the transmitter and receivers?
A: The transmitters use a 1300mAh battery, it can work 25 hours once you charge fully.
and receives use 300mAh battery, can work up to 20 hours.
Q: Can i use the wireless tour guide system in my country?
A: There system adopts 2.4G technology, it is free in the whole world. Of course, you can use it.
Q: Can i buy another type charging box for it?
A: Yes, we also have 32 ports, you can contact us to get the price.
