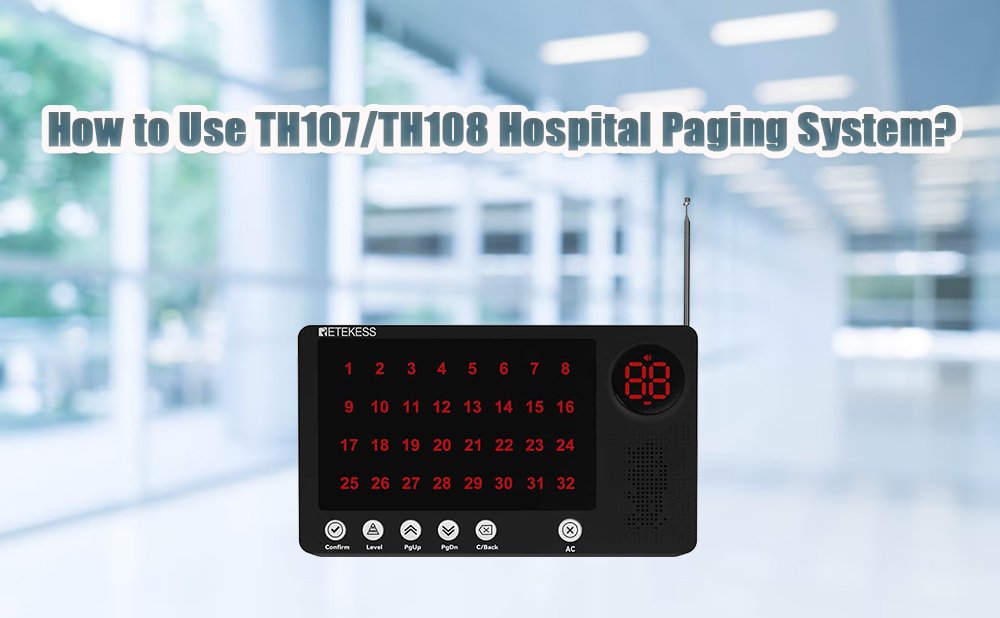

How to Use TH107/TH108 Hospital Paging System?

How to match the button extension to the host?

Turn on the setup function by pressing and toggling the buttons on the back of the screen main to the setting.

1. Short press [Confirm] key to enter the setup state, the main screen is off, the sub-screen displays "F1", the host broadcasts "language settings";

2. Short press 【PgUp/PgDn】, when the sub-screen displays "F2", the host voice broadcasts "group management"; 3, short press 【Confirm】 key to enter the setting state, the main screen goes out, the sub-screen displays "F1", the host broadcasts "language settings".

3. Short press 【Confirm】 key to enter, the main screen default 1 white flashing, has been the code group number white long light, the sub-screen display "--";

4. Short press [PgUp] / [PgDn] key to select the main screen group number, the main screen selected group number white blinking, the other has been to the code group number white long light, the group number is selected can be carried out after the following extension operation:

1) Add extension:

a. Short press the extension button, the host broadcast group number, the main screen group number green flashing, the sub-screen displays the group group of extension number (1-8), the host voice prompts "drop" sound, at this time you can set the level of extensions, short press 【Level】key, the cycle of setting the level of extensions, the main screen corresponds to the group number of lamps in the current level of color blinking display

b. Short press [Confirm] key, or wait for 3s, the sub-screen displays "---", the

host beeps "drop" sound, the end of an extension to add the operation;

c. After the extension is successfully added, add other extensions in the same way (the maximum number of extensions in a single group is 8, more than 8 host sound prompts "beep", the sub-screen displays "Er"), or select other groups to add extensions through the [PgUp] / [PgDn] key;

d. After all the extensions are added, short press [C/Back] key to return to the previous menu, the main screen goes out and the sub-screen displays "F2";

e. Short press [C/Back] key, exit the setup state, the host beeps "drop" and returns to the receiving state;

 Setting state, such as timeout 20 seconds without operation, automatically return to the receiving state, the host beep "drop".

How to set different color levels for call buttons?

1. Short press the [Level] key to enter the level setting, the main screen default 1 group number flashes in white color, and the sub-screen shows "---";

2. Short press the extension, the main screen group number with the current extension color flashing, sub-screen flashing display extension in the group number;

3. Short press 【Level】key, cycle set the level of the extension, the main screen group number to the current level of color flashing display, the sub-screen shows the extension in the group number;

4. Short press 【Confirm】 key, or wait for 3s, the extension level setting is complete, the main screen group number becomes white, the sub-screen displays "---", the host beeps "drop" a sound, the end of an extension level timeout duration (unit: minutes), the sub-screen displays the number (0-99).

Note: 0 means no timeout reminder is set, and the timeout also turns blue in the case of broadcasting all the time;

4. After the selection is completed, short press [C/Back] key to return to the previous menu, the main screen goes out, the secondary screen displays "F4", and the host broadcasts a beep "drop", indicating that the setting is complete;

5. Short press [PgUp]/[PgDn] key for other settings; or short press [C/Back] key, the host beeps "drop", return to the receiving state;

 Setting state, such as timeout 20 seconds without operation, automatically return to the receiving state, the host beeps "drop".
