Retekess TD158 Wireless Guest Paging System Upgraded Version Coasters Restaurant Pagers
Upgraded Version with screen on the pagers
The digital tube can also be seen in the dark environment
Lightweight, suitable for small businesses
Build-in 300mAh battery, standby time for 20 hours
Work range: max up to 300M in the open area
Charging indicator light, flash when charging and light green when full
4 reminder modes and adjustable reminder time
Buy one unit get one pager for free. For example:
if you choose "10 pagers", you will receive 10 + 1 pagers.
If you choose "20 pagers", you will receive 20 + 1 pagers and so on.
Bulk order Inquiry
OverView
Reduce contact using wireless guest paging system in restaurant salon veterinary clinic
Also suitable for barbecues, cafeterias, cafes, club catering receptions, etc.
TD158 guest paging system is our new arrival. It adopts AM technology, works with long-range distance in an open area.

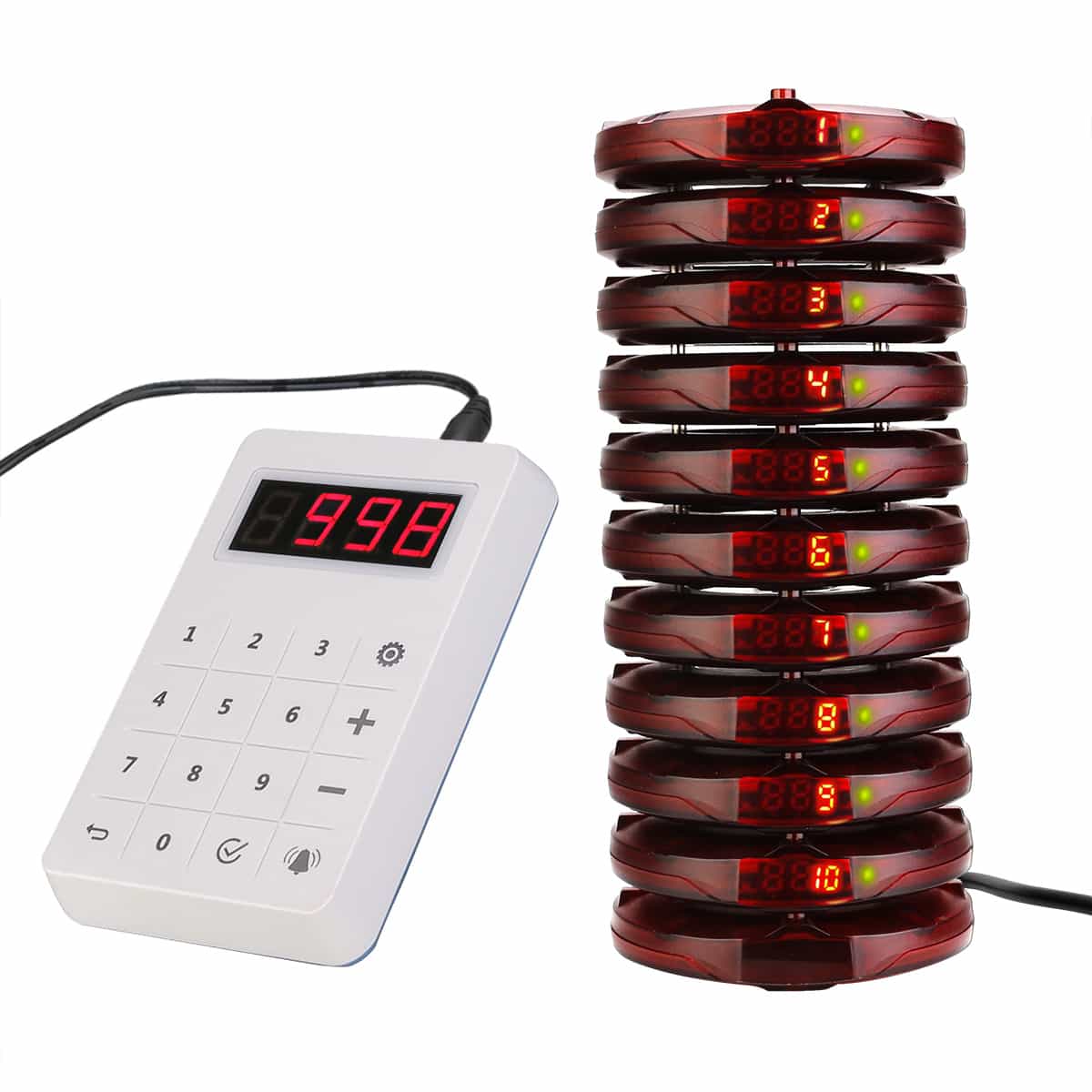

This one is the upgraded version of TD158, there are screens on the pagers, you can see the numbers on the pagers.
There is a digital tube on the pagers, easy to know the numbers.
Features of TD158 Wireless Guest Paging System Upgraded Version:

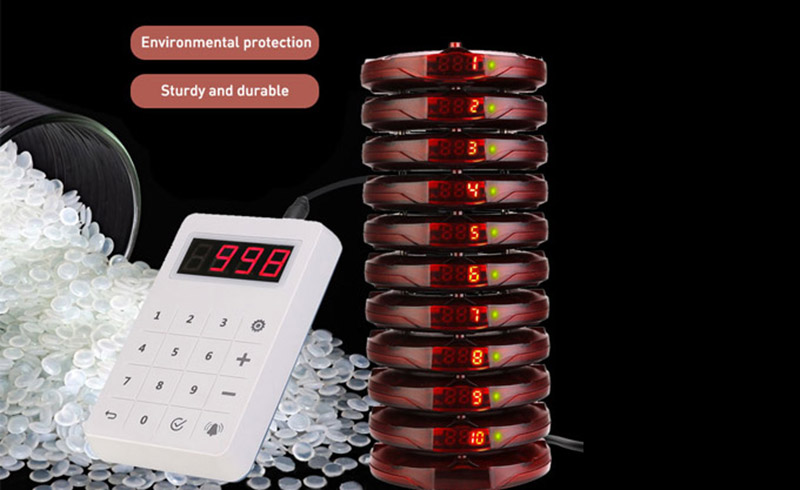

Durable
Built with high-quality materials for maximum durability and environmentally friendly
AM technology
Adopts AM Modulation-mature technology 433MHz
Touch keypad
White touch keypad transmitter, IP33 waterproof level
Rechargeable battery
Built-in 3.7V 300mAh rechargeable lithium battery, charging full time only need 4h
Changeable prompt way
Buzzing /vibrating /flashing lights can be chosen freely
One key power off
0 + call, shut down all the pagers one time
Multiple keyboards work with the same pagers
One-pager can work with several keypad transmitters, you can all the same pagers in the different places
Indicator light
Flash when charging, but light when charging full, it is easy to know the charging condition
Support customize
Each pager support customize your own pager/brand to publicize your own business
Reminder time can be setted
Time from 0-200S, on F3 station, press the number and then pick up one-pager from the charging case in the charging condition.
Confirm it within 3S. If successful, the pager will be Buzzer + flashing. The default setting is the 30S. "O" means reminds all the time
Easy to program the number
Press set key choose F2 and press the Confirm key to enter the number that you want and press the confirm key within 3s and pick up the pagers that you need to change the numbers. If successful, the pagers will be Beep + flashing for 3 times
Note:
1. the number can be any from 1-999;
2. Please use the keypad transmitter on the table which be made of wood, plastic, glass and other materials, and avoid the table top of metal and marble.
Spec
Specification:
Receiver |
|
| Dimension | Φ80.5*15mm/Φ3.17*0.59inch |
| Receiving Sensitivity | -103dB |
| Standby Time | ≈20 hours |
| Battery | Built-in 3.7V 300mAh rechargeable lithium battery |
| RX Frequency | 433MHz |
| Reminder Method | Buzzing, LED Flashing, Vibration |
| Distance of Transmission | About 300 meters in a wide-open field |
| Modulation | AM |
Transmitting host |
|
| Dimension | 120*76*20mm/4.72*3.00*0.79inch |
| Transmitting Power | 240mW |
| Tx Frequency | 433MHz |
| Power Adapter | Input: AC 100-240V, 50/60HzOutput: DC 12V, 1A |
| Keypress Method | Touch-type |
| Modulation | AM |
FAQ
Click here to view the TD158 FAQ blog, if you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at support@retekess.com
Q: How many pieces pagers can i use in the one guest paging system?
A: Support 999 pcs pagers.
Q: What is the working range?
A: It can be 300M in the open area. If in the building, it may shorten.
Q: Can i customize the logo on the pagers?
A: Minimum order quantity for products that require customized logo: 50 pieces
Q: How can i shut down all the pagers?
A: First, you need to put all the pagers on the charging base and then press 0+call.
Q: How many prompt ways does the pager system has?
A: 4 ways: Flash+Vibration, Flash + Beep, Flash + Beep + Vibartion, Flash
Q：How it works?
A: If you are running a restaurant, after the customer orders the meal, the waiter will give the pager to the guest and record the pager number, and the guest will return to his seat to wait. When the customer's meal is ready, the chef or waiter presses the customer's number on the keyboard to call the customer to pick up the meal. The customer returns the pager and takes away the meal.
The same principle can be applied to other places where customers need to be paged, such as bars, cafes, bakeries, banks, food trucks, church nurseries, clubs, etc.
