Adjustable volume level; adjust the volume from 0-15 levels;
2W speaker makes the voice broadcast clear and loud
Any choice of 9 call modes to meet different usage scenarios;
Automatic voice prompt when setting the menu; more simple and convenient

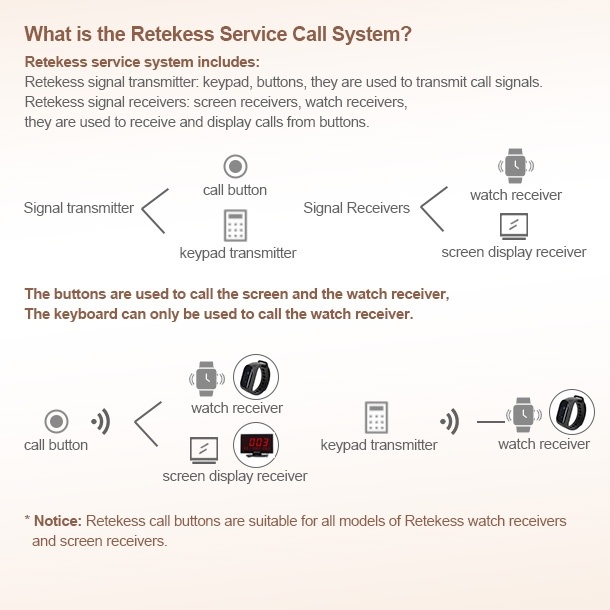

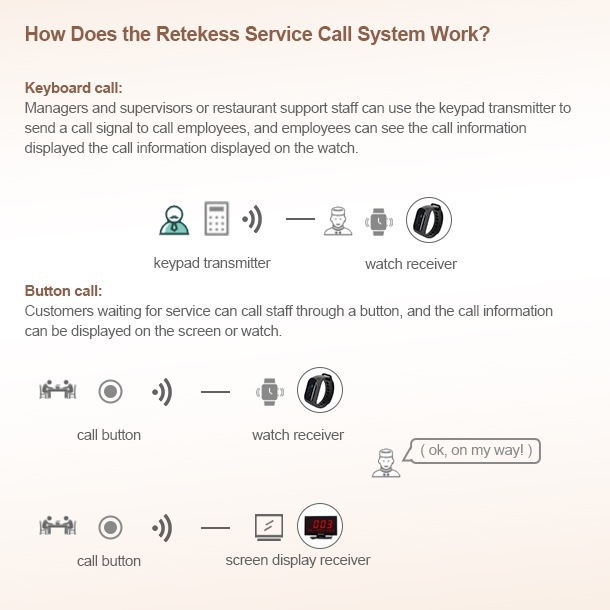

TD136 display receiver can add up to 999 wireless TD008 waterproof call button transmitter
Retekess wireless calling system TD136 display receiver and TD008 call button for restaurant, hotel, hospital, bars
Characters of wireless paging system in restaurant of TD136 screen receiver:
Adjustable volume level
Adjust the volume to a comfortable position from 0-15 levels
Loud sound speaker
2W speaker makes the voice broadcast clear and loud; don't worry about customers leaking information
9 call propmt modes
Support voice broadcast function; any choice of 9 call modes to meet different usage scenarios
Automatically voice prompt
It comes with a voice prompt when set menu; makes the operation more simple and convenient
Support 6 languages
Choose from EN/RU/FR/DE/ES/IT as your need
3 Groups of 2-digit digital tube display
Calling history checking
call history records can be viewed by display screen, don’t worry about missing the customers who called before
Easy to install
With a double-sided sticker, TD004 button can be attached to a table or wall
With a cancel button; the customer does not need service; can temporarily cancel the call
Maybe You Want to Know
Applications:

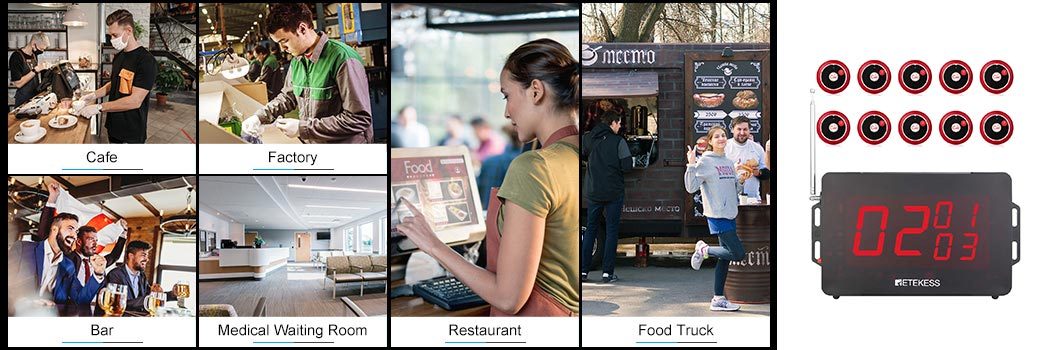

Widely used; applied to restaurant; nursing home; cafes; supermarkets; hotel; hospital wards; emergency center; banks; schools; which can help you improve quality of service
Please fill in your procurement needs and contact information
Specifications:
TD136 Display Receiver |
TD008 Wireless Call Button |
||
Dimension | 230*131*40mm | RF frequency | 433MHz |
Material | ABS | Modulation mode | ASK (AM) |
Modulation | AM(OOK) | Working chip | learning code |
Rx Frequency | 433MHz | Power | 2pcs 3V CR2016 button cell (included) |
Standby time | 20h | Working current | 17mA |
Built-in battery | 550mAh | Emission distance | 200 meters (in open area) |
Built-in battery for continuous working hours | 4h~5h | Working temperature | -20 ℃ to 55 ℃ |
Power Adapter | INPUT:100-240V~50/60Hz 0.5A MAX OUTPUT:DC12V 1A | Size | 60 x 60 x 15mm |
Weight | 23g |
Package Includes:
TD136 Display Receiver×1
Adapter ×1
Manual ×1
TD008 Call buttons ×6/10/15/20(optional)
Q: How to get more extra call button TD008?
A: Please click here and directly place an order.
Q: Does it keep calls in order so that first pressed is first served?
A: For Retekess TD136 Wireless Calling System, the larger number on the left represents the number that has just been called, and the two groups on the right are historical call records. In addition, the TD136 cycle display time setting is optional from 0 to 99 seconds, Avoid missing any customer information.
